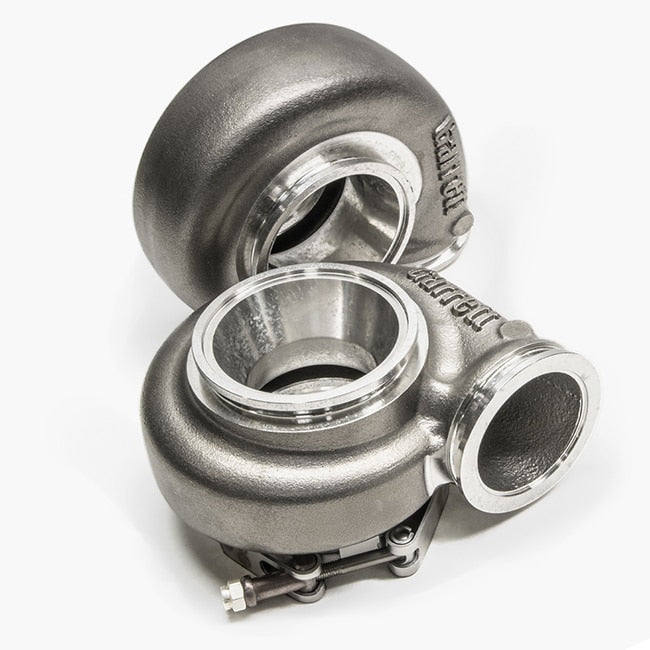

Garrett G-SERIES G30 Turbine Housing Standard Rotation

Spec

• Turbine Inducer - 60mm
• Turbine Inducer - 55mm
• Turbine Trim - 84

Features

• STAINLESS STEEL TURBINE HOUSING OPTIONS RATED FOR UP TO 1050° C

Turbine Housings

All G Series Turbine housings are made from stainless steel to provide ultimate durability and temperature resistance up 1050 degrees C.
Internally wastegated housings are compact, efficient, and designed with maximum bypass port size to reduce boost creep and provide better boost control.
Turbine housings are available in a variety of wastegated and non-wastegated, open volute, T25 and Vband configurations so be sure to order the correct part for your application.

• 3 inch (76.2mm) V-band inlet (same as GTX)
• 3.5 inch (90.16mm) V-band outlet (same as GTX)
• V-band 0.61 and 0.83 configurations available
