Davies Craig Universal Fan Fitting Kit
The Davies Craig Universal Fan Mounting Kit includes all parts necessary for mounting & wiring 12volt Fans for both Davies Craig and other Electric Fan models.
For 24V fans, please look at part number 1001.
??
Fan Sizes: 8", 9", 10", 12", 14", 16"

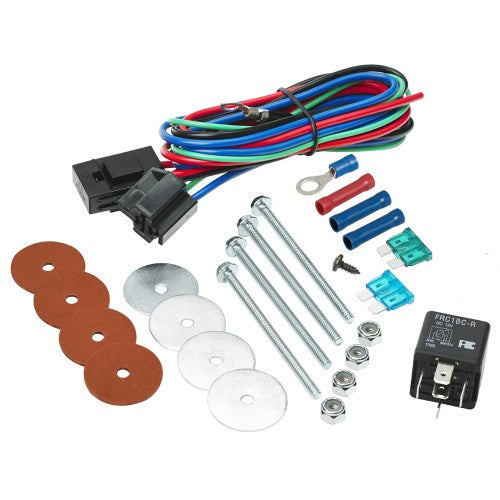

KIT COMPONENTS
| Description? | Units? |
| FUSE WEDGE 15 AMP?? | 1? |
| FUSE WEDGE 30 AMP?? | 1? |
| SCOTCH LOCK 3M 564?? | 1 |
| NUT NYLOC 3/16?? | 4? |
| RELAY - 12V 40 AMP 5 PIN WITH RESISTOR PROTECTION?? | 1? |
| BOLT HEX W/F 3x3/16? | 4? |
| WASHER - FIBRE RED | 4 |
| WASHER MUDGUARD SILVER | 4 |
| CONNECTOR (YELLOW) Y3C | 2 |
| HARNESS 12VOLT | 1 |
| RING TERM. (YELLOW) Y3-6 | 1 |
| SCREW - SELF TAP 8X3/8 BZ | 1 |
| Universal Fan Hardware Kit 12V / 24V Instructions | 1 |
Fitting / Mounting Your Electric Fan?
Please pay particular attention to the markings on the fan hub/blade regarding the direction the fan should operate as Davies Craig Electric Fans are reversable.?Once the fan is installed the arrow may not be visible.?
The Thermatic Fan fitting instructions must be closely followed, regardless of whether the unit is mounted upstream or downstream.?
| Fan Size? | Voltage? | Recommended Fuse (Amps)? |
| 8 ? 9? 10? 12? 14??? | 12V? | 15A |
| 14?HP & 16?? | 12V | 30A? |
| 8 ? 9? 10? 12? 14?? | 24V? | 7.5A? |
| 14?HP & 16"? | 24V? | 15A? |
??
If you wish to thematically control the electric fan(s) you should purchase a Davies, Craig Thermatic Switch Kit, Part: #0401, #0400 Combo Kit or a Twin Fan Thermatic Controller Part, #0444, #0455 from your retailer. If you wish to cool both the radiator and AC condenser you should purchase Part #0444, #0455, or a Thermatic Switch & Relay Kit, Part #0404 - which contains the Thermatic Switch with an extra relay and wiring loom.
