Davies Craig EWP80 pump & LCD controller combo


£0.00
Tax included, shipping and discounts calculated at checkout.
More payment options

The EWP 80 Electric Water Pump and LCD EWP /Fan Digital Controller Combo simple, do-it-yourself, easy to install, designed to complement or replace your existing belt-driven, mechanical water pump and engine thermostat, and operate your Thermatic Fan.

The EWP 80 will fit most vehicle makes and models fitted with naturally-aspirated or turbo engines up to two litres, 12 Volt Only.

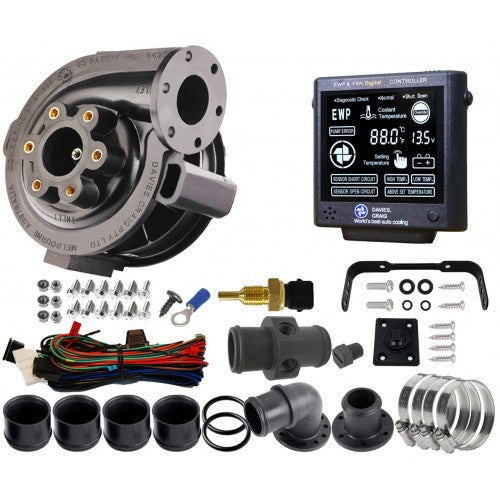

Kit Contents

EWP COMPONENTS

HARDWARE BAG COMPONENTS

Description

Qty

Description

Qty

EWP Short Kit

1

Scotch Lock

1

EWP & FAN Controller

1

Ring Terminal

1

Inline Adaptor

1

Ring Terminal (Yellow)

1

Wiring Harness (10A Fuse)

1

Self Tap Screws

1

Elbow Adaptor 35mm (Nylon)

1

Temp Sensor Assembly

1

Straight Adaptor 35mm (Nylon)

1

Adaptor M5 Bolt

6

O-Ring

2

Adaptor M5 Nut

6

Thin Rubber Sleeves 3mm

2

M5 Cap Screw Long

6

Hose Clamps

4

EWP Hardware Bag

1

Technical Specifications
Technical Specifications - EWP80 Technical Specification - LCD Controller
Operating voltage 3V DC to 15V DC Voltage range 12V DC to 29V DC
Maximum current 7.5A @ 13V Display LCD size 70mm (2.76 ) x 60mm (2.36 )
Flow rate (max) 80 L/min (21.13 US gal/min) @ 13V DC Maximum current 12Amps
Operating temp. -40 to 130 C (-40 to 266 F) Warning alarm High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit
Pump design

Clockwise centrifugal with volute chamber

Targeted (set) temperatures Singular degrees from:
60 C (140 F) to 100 C (212 F)
Pump weight 900 grams (2.0 lb) Memory Set & targeted temperature
Pump material Nylon 66, 30% glass-filled Fan cut-in temp. 3 C (5.4 F) above the targeted (set) temperature
Burst pressure 350 kPa (50 psi) Controller type PCB with micro-processor
Seal Ceramic face seal Sensor type Thermister in housing
Fits hose sizes 32mm to 51mm (1 to 2 ) Overrun/ shutdown -10 C (14 F) below set/target temperature or 3 minutes
Indicators Temperature, power, EWP, test, fan, high & low temp, voltage, above set temperature (with alarm)
Weight 100 grams (3.5 oz)
Dimensions

Length = 95mm (3.7")

Width = 130mm (5.1")

Depth = 25mm (1 )

The revolutionary, Australian-designed EWP 80 is made from anti-corrosive, lightweight, heat-resistant, glass-filled nylon and incorporates a ceramic faced seal for long-life durability.
The EWP 80 greatly enhances engine cooling control while giving you added power and improved fuel economy. By removing the parasitic power losses of a belt-driven, mechanical water pump the EWP can provide up to 10kW (13hp) of extra power and increased torque.


The LCD EWP /Fan Digital Controller will manage both the EWP and Thermatic fan operation. The Digital Controller will vary the speed of the EWP in response to the engine s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency.

The Thermatic Fan/s will be activated automatically once the engine coolant rises 3 C (5.4 F) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 10 C / 14 F below the set temperature) after engine shut down, eliminating heat soak and extending engine life.


The EWP 80 Digital Controller Combo is supplied in a do-it-yourself kit with everything you need for fitment to your vehicle s engine, including an easy-to-follow DIY instruction booklet.

The world s most advanced total engine cooling management system

  • universal fit
  • more power
  • more cooling
  • increase fuel efficiency
  • extend engine life
  • world-leading technology
  • lightweight Nylon

Product Selection Guide

Application Pump Model Pump Kit Pump Combo Controller / Switch
Part #
12 V
Part #
24 V
Part#
12 V
Part #
24 V
Part #
12 V
Part #
24 V
Motorbike up to 500cc (Standard) EBP 15 9001 0444 or 0455
Motorbike 500cc - 1000cc (Std) EBP 23 9050 0444 or 0455
Motorbike 1000cc - 2000cc (Std) EBP 25 9005 0444 or 0455
Vehicle Heater System (Standard) EBP 23 9050 0444 or 0455
LPG (Butane) System (Standard) EBP 23 9050 0444 or 0455
Intercooler
(depending on capacity)
EBP 23 9050
EBP 25 9005
EBP 40 9040 9041 0444 or 0455 0444 or 0455
EWP 80 8005 8907
Engines up to 2.0L (Standard) EWP 80 8005 8907 8001 8001
Engines up to 2.0L - 3.5L (Standard) EWP 115 8025 or
8040
8026 or
8041
8930 or
8950
8931 or
8951
8001 8001
Engines up to 3.5L - 5.0L (Standard) EWP 130 8080 8081 8990 8991 8001 8001
Engines 5.0L or greater (Standard) EWP 150 8060 8061 8970 8971 8001 8001
Modified Engines
Supercharged/Turbo
EWP 150 8060 8061 8970 8971 8001 8001
Drag Racing, Drifting & Speedway EWP 150 8060 8061 8970 8971 8001 8001
Off Road / 4WDs EWP 130 8080 8081 8990 8991 8001 8001
Solar Hot Water Systems (depending on size) EBP 15 9001 0444 or 0455
EBP 23 9050 0444 or 0455
EBP 25 9005 0444 or 0455
EBP 40 9040 9041 0444 or 0455 0444 or 0455
