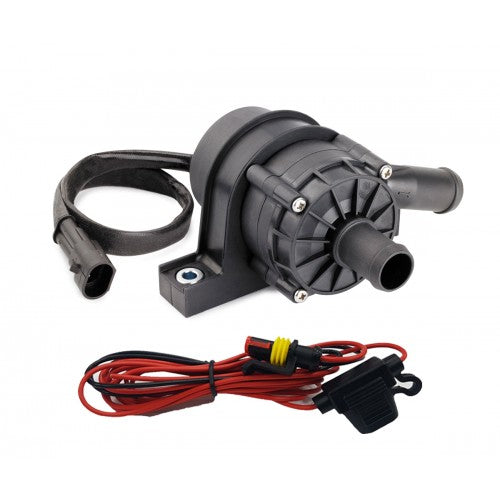

Davies Craig EBP40 (12-volt)
The EBP40 is a brushless 12 volt, high flow (37litres / 9.77 gallons per minute), magnetically driven water pump. The EBP motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.
Technical Specifications |
Kit Contents |
Units | ||
Motor | 12V Brushless | EBP40 | 1 | |
Operating Voltage | 9V to 15V DC | Bracket | 1 | |
Max Current Draw | 4.6 Amps | |||
Pump Design | Recirculating * Centrifugal | |||
Drive | Magnetic No seals | |||
Operating Temperature |
-40C to 120C (-10F to 248F) |
|||
Burst Pressure | 250Kpa (36PSI) | |||
Flow Rate |
37L/min (9.77 gal/min) |
|||
Weight |
570 grams (1.25 lbs) |
|||
Head Pumping Pressure |
0.85 Bar 12.32 PSI |
|||
Fits Hose |
19mm (3/4" Inch) |
|||
Max Head | 9 meters | |||
Pump Material | PPS/PA66 | |||
IP Rating | IP67 |
