Description

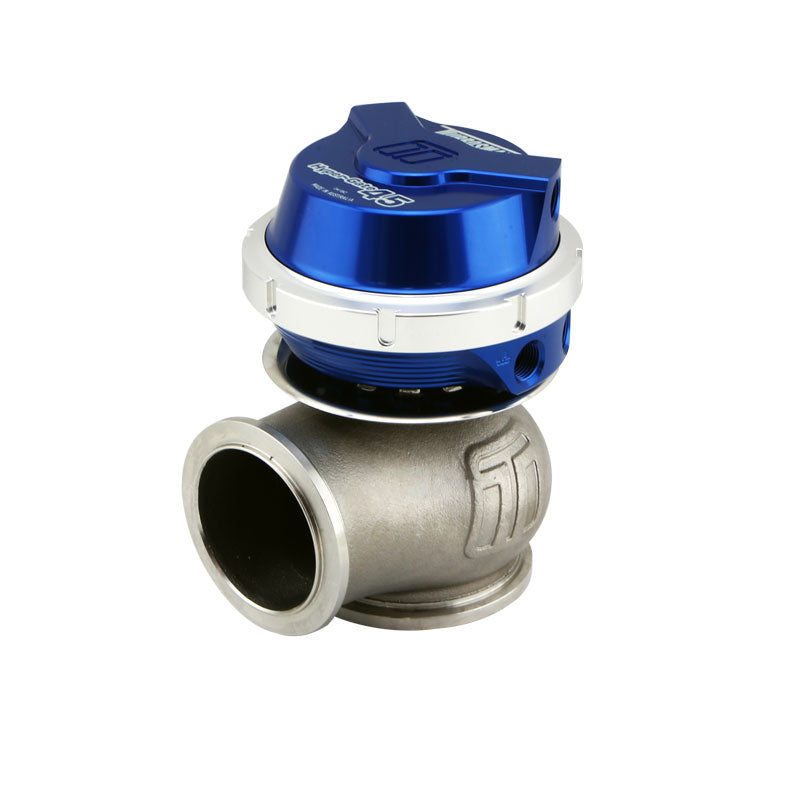

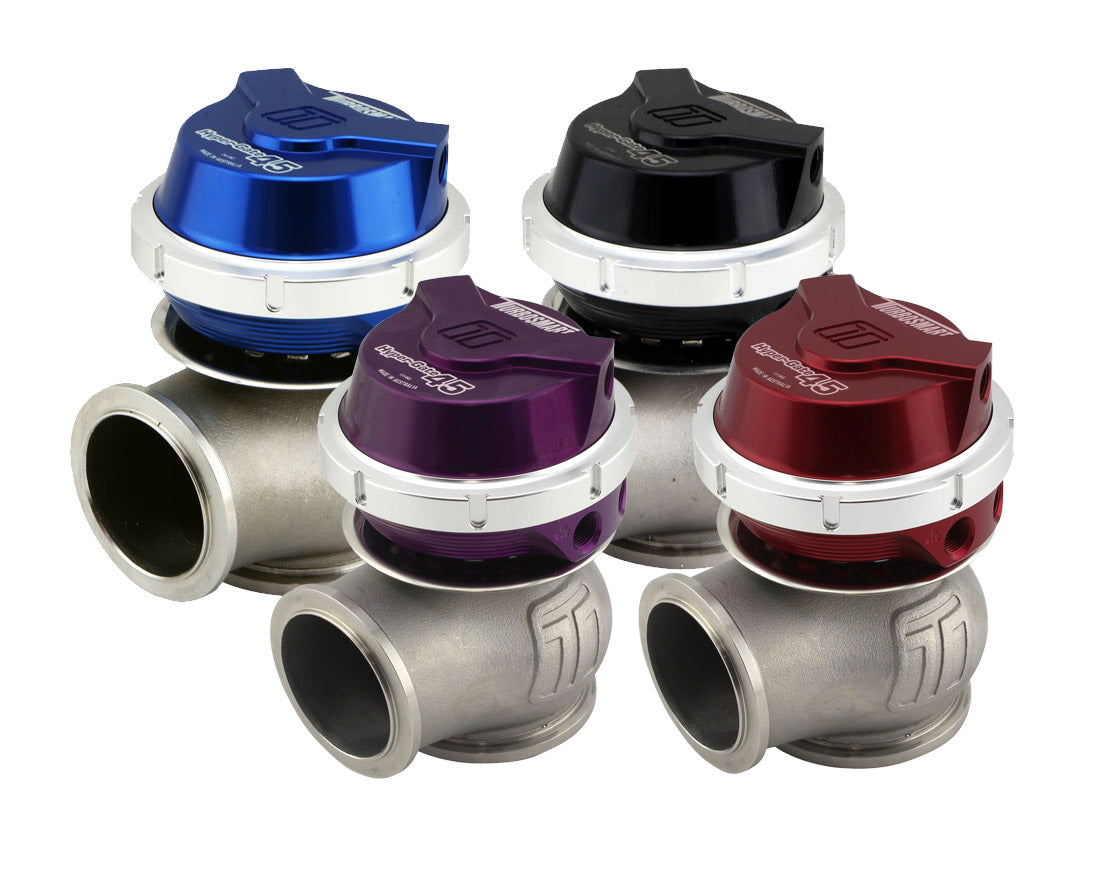

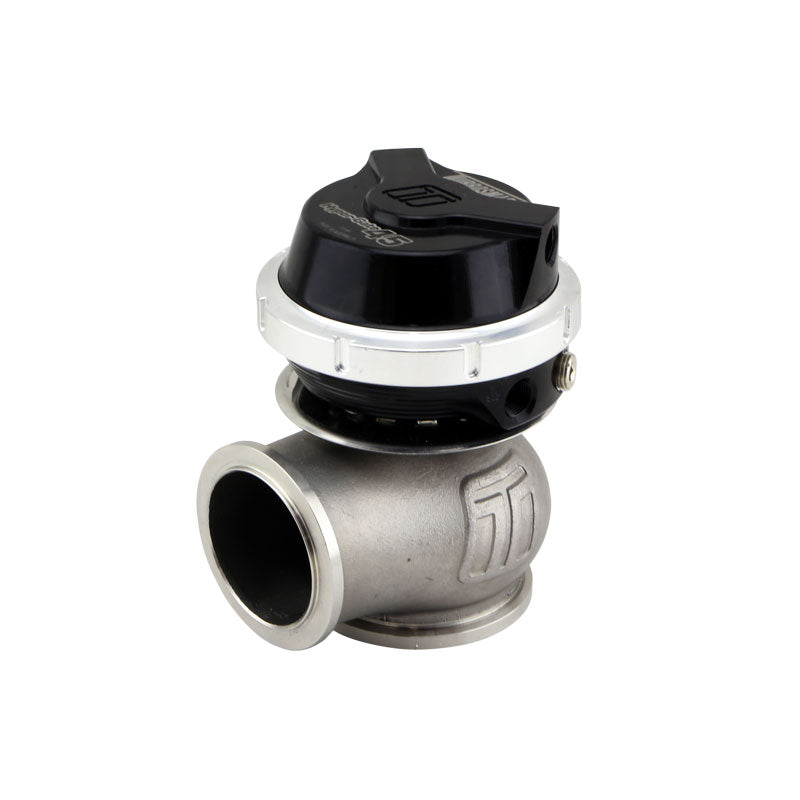

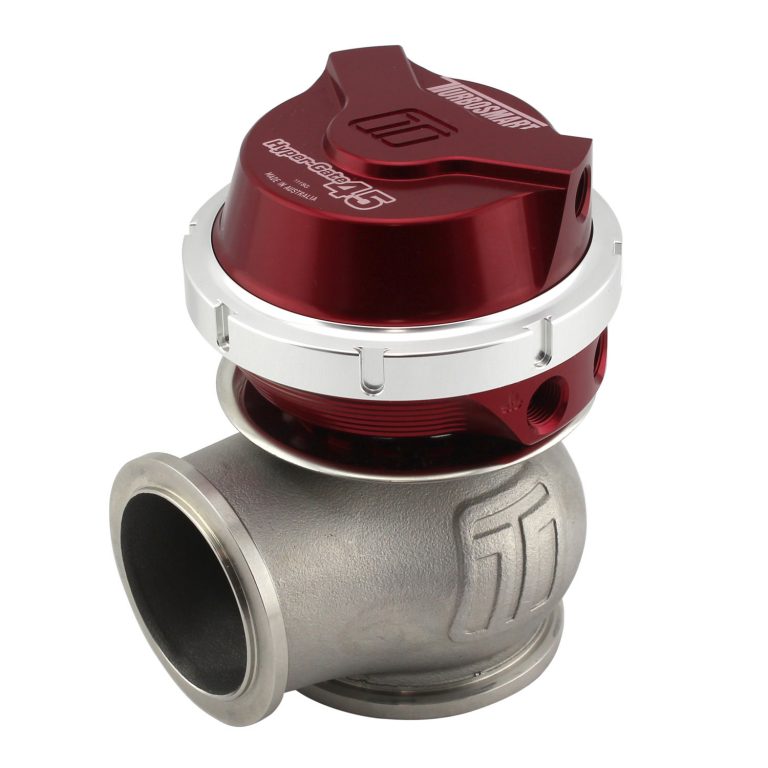

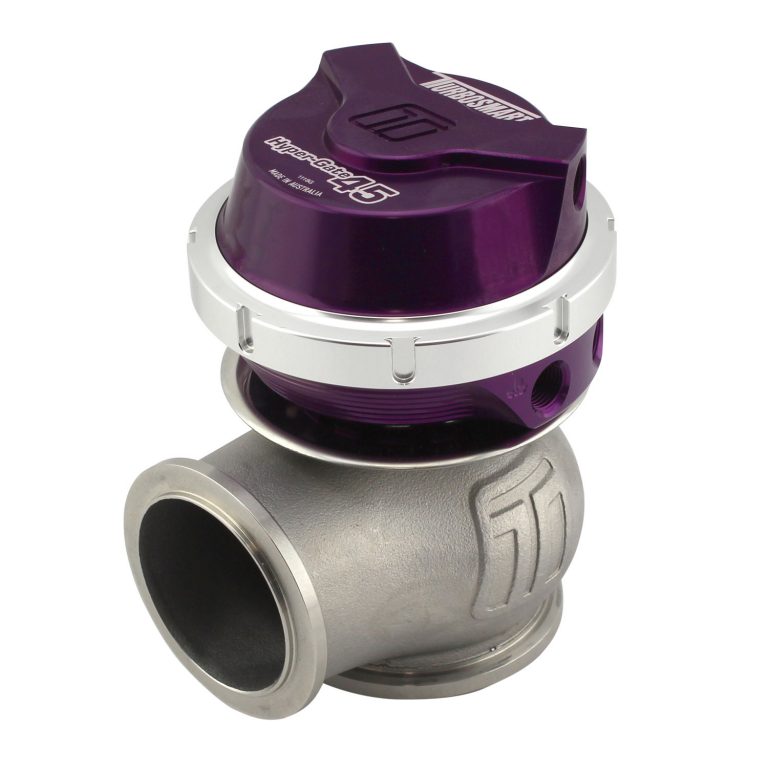

Turbosmart Hypergate 45 – Gen V External Wastegate

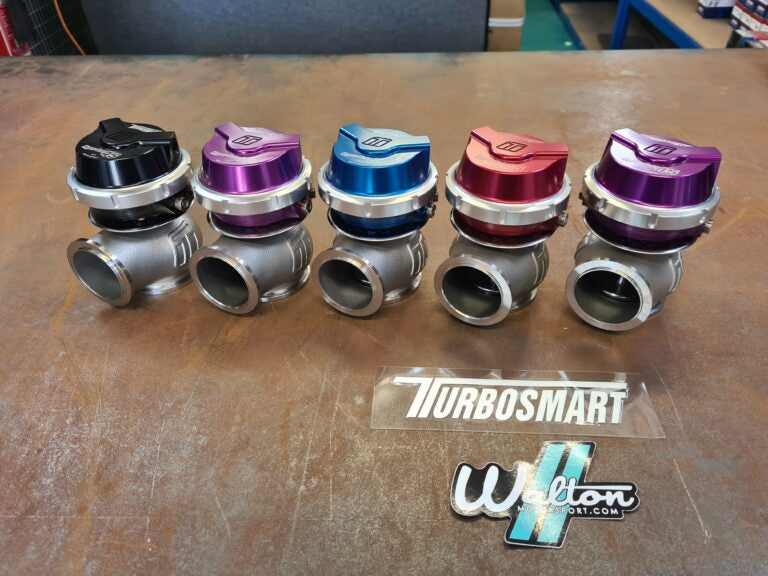

The Hypergate 45 is a product Walton Motorsport has always recommended for performance. Moreover the supply of spare parts and accessories. In addition, to the constant development to improve the range.
The Turbosmart External Wastegate Gen V Hyper Gate 45 is a Motorsport proven cost-effective external wastegate.
GenV provides many user configurations. In addition, world-leading extended thermal performance. Moreover, fatigue resistance and best-in-class flow performance for optimum position. Above all, longevity.
The GenV External Wastegate from Turbosmart. In short, is a ground-up rework of a classic. Therefore, the only feature that rolled over from the Gen4 range was the mounting position. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features and options, as a result, better performance than any other gate like it.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system. Variable actuator cap and base. As a result, there is an easy 360-degree optional routing of reference hoses. Secondly, Strap-type V-band clamps. Moreover, Optional liquid-cooling ports. After that, 1/8″ NPT reference ports are provided with the full range of available springs.
Turbosmart Hypergate 45 – Gen V External Wastegate Features
- Class-Leading, Thermal Performance
- Class-Leading, CFD & Bench Validated Flow Performance
- Nitronic 60 Valve Guide. Moreover, High Temp 347 SS Body
- 17/7 PH Stainless Steel Springs
- Liquid Actuator Cooling Option
- Strap Type V-band clamps.
SUPPLIED WITH
- GenV Wastegate unit
- All Springs Included in Box
- Wastegate Pre-fitted as Per Description
- GenV SS316 Valve seat
- GenV V-Band Clamps
- Mounting Bolts and Nuts
- GenV Inlet & Outlet Weld Flanges
- Collar tool (master/slave)

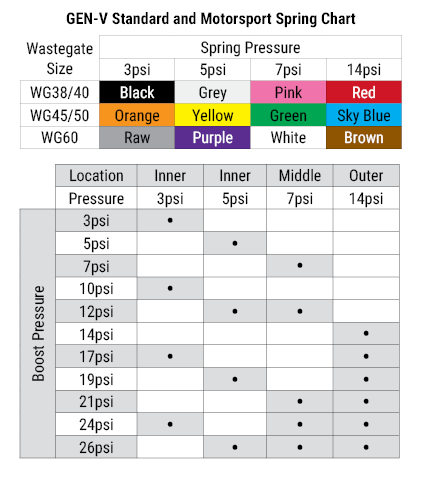

- 3, 5, 7, 14 psi spring kit (1x spring installed)
- 4 x 1/8” NPT plugs (1x installed)
- 2 x 1/8” NPT nipples
Turbosmart Hypergate 45 – Gen V External Wastegate FAQs
Do I need to use the liquid cooling ports?
No. however, it is purely an option for extreme applications where there is limited airflow around the wastegate.
Can I rotate the top housing?
The modular design of the GenV Range of External Wastegates means you can rotate the actuator housing 360 degrees. As a result, virtually unlimited hose routing options.
Will a GenV version fit where my Gen4 Turbosmart Wastegate fit?
We made sure the inlet and outlet fitting orientation matched the previous gates for that exact reason. As a result, the only thing in common between the previous design and this one is the mounting orientation.
How do I change the spring(s)?
You will need the locking collar tool as supplied in the box. Most importantly, you also need to observe the instructions. Secondly, apply pressure to the top cap before you can remove the collar. This is part of the design. Moreover, an important anti-vibration measure.

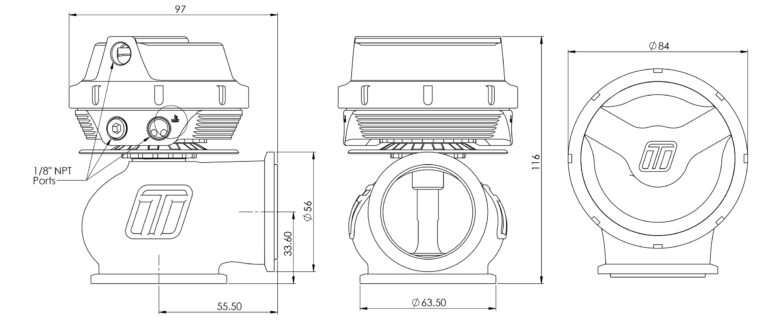

What size are the reference fittings?
Both the boost control reference ports and the (Optional) liquid cooling ports are 1/8NPT.
