Turbosmart ALV40 Fresh Air Valve (TS-0552-1402)

SKU: TS-0552-1402
Turbosmart Fresh Air Valve ALV40
Turbosmart ALV40
Turbosmart ALV40
Turbosmart ALV40

Description

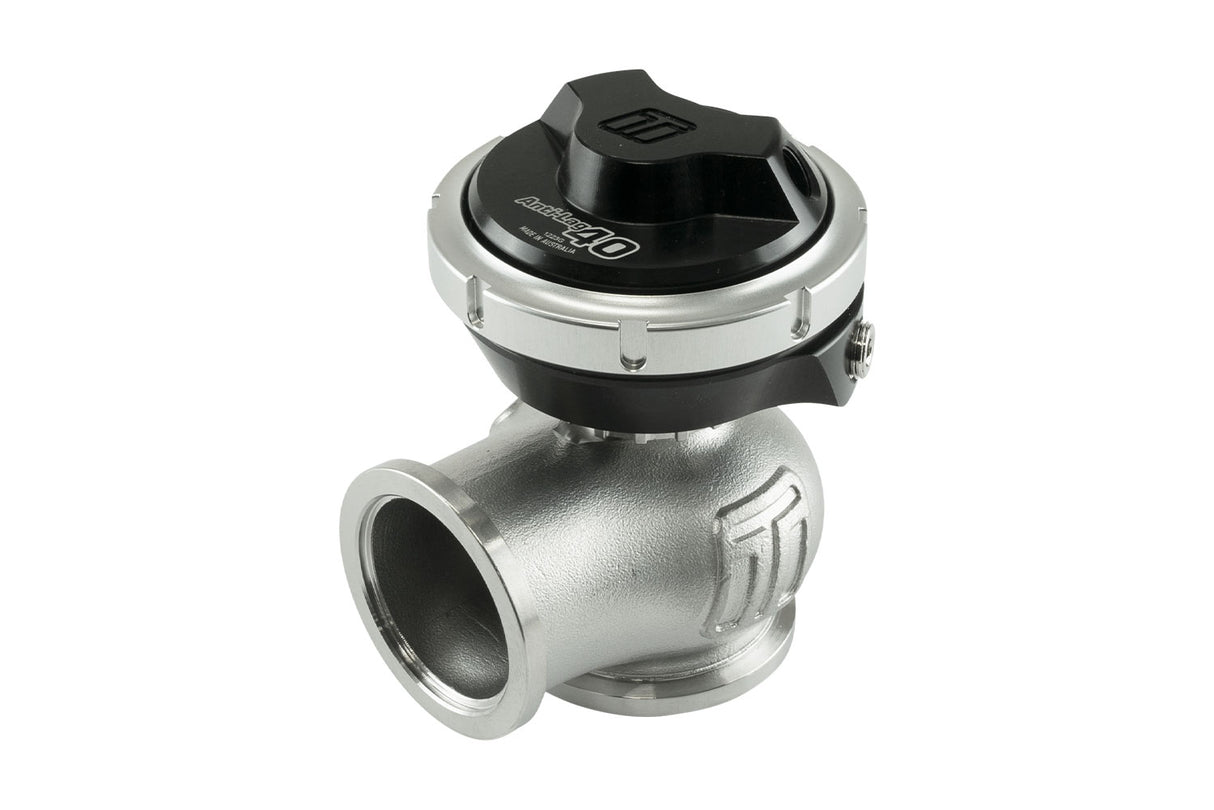

Turbosmart Fresh Air Valve ALV40

Introducing the Turbosmart ALV40 fresh air valve for Anti Lag Systems.

The Turbosmart ALV40 fresh air valve allows air from the charge pipe to enter the exhaust manifold via a specific set of pipes attached the manifold. This facilitates in allowing the engines timing to be retarded and allow  combustion to happen inside the exhaust manifold. This in turn spools the turbo. Subsequently, allowing your engine to stay on boost, without the throttle pedal being activated.

To run a Turbosmart ALV Fresh Air Valve you will require a suitable manifold exhaust manifold which we can produce in house.

Featuring a 40mm valve diameter, a purpose designed actuator housing, inverted diaphragm and supplied with multiple fittings for ease of fitment and fabrication

Alloy inlet flanges are now available to suit the reverse orientation of the valve as well as specific 2,3,4,5 and 6 port outlet flanges, required depending on application.

  • Whats Included?
    • – TS-0552-1402 Turbosmart ALV40 Fresh Air Valve
    • – TS-0550-3101 // ALV Inlet Weld Flange – AL
    • – TS-0550-3103 // ALV Inlet pipe adapter 1-1/2″

For fitting you will require a 4 Port solenoid such as the Turbosmart EB4 Solenoid – TS-0301-2003

FAQs

Can I add this to any manifold? – No, anti lag puts a huge amount of strain on your exhaust manifold. It is paramount that the manifold is designed to work with Anti Lag. Commonly we see pieces of the inside of the manifold broken off from the heat and vibrations that then go through the turbo causing failures.

What else do I need? – Aside from a compatible exhaust manifold, you will need an adapted boost pipe to source the air from. You also need a way to operate the valve. the Mac solenoid needs with an pressure or vaccum source. The simplest method is to use an air accumulator tank sourcing pressure from a boost pipe via a check valve. We also recomend e-throttle.

Will Antilag harm my engine? – No, providing it is setup and tuned correclty. In addition, it is important to consider how aggresivly it is setup.

How do I control the solenoid? – An antilag capable ECU is required, such as the ECU Master Emu Black

Worldwide Shipping

Yes! We ship to most countries via DHL. For a shipping quote add the items to your basket, update your address and it will calculate the shipping price. If you feel the price to be incorrect or no options are available, please get in contact providing your address inc name, contact number, and email address plus the products you wish to order.

When will my order be dispatched?

We aim to dispatch all "In Stock" items same working day if ordered before 12:00 Midday, orders placed after this time will be dispatched the following working day.

Out-of-stock items or items with a status of "Available from Supplier" are usually dispatched within 2 weeks. If there is urgency, or a more accurate date is required don't hesitate to get in touch with us.

Built-to-order manifolds are typically built in a 1st come 1st served order, and our lead times vary with demand, We advise contacting us to get our most up-to-date information

What shipping options are available?

Within the UK our main shipping methods are 1st Class Royal Mail and Next Day DHL. Orders under £50 and small in size may have the option for Royal Mail dispatch. However, for urgent orders we advise opting for the DHL Service

Outside the UK we almost exclusively use DHL, Shipping quotes can be obtained at the basket when entering the delivery address. For delivery destinations outside of the European Union (EU) items will be liable for import duty and taxes at the local rate. We are unfortunately unable to advise on these costs.

Additional information

Weight 1.4 kg
Dimensions 15 × 14 × 19 cm
Brand

Turbosmart
