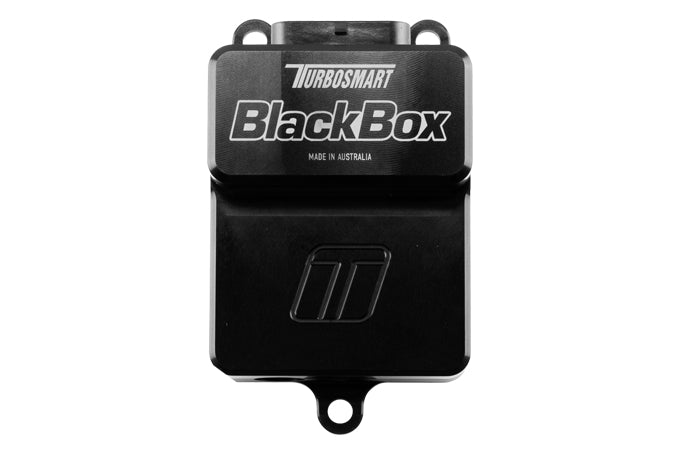

Turbosmart BlackBox Electronic Wastegate Controller (TS-0305-1001)

SKU: TS-0305-1001
Turbosmart BlackBox Electronic Wastegate Controller (TS-0305-1001)

Description

Turbosmart BlackBox Electronic Wastegate Controller (TS-0305-1001)

BlackBox by Turbosmart is a dedicated Electronic Wastegate Controller which can be used in cooperation with a range of Factory, Aftermarket and Motorsport ECU’s. The BlackBox provides protection from the current demands and translation of basic as well as more advanced boost control strategies into a gate position and can be used on single, or twin electronic wastegate systems for the ultimate in boost control.

The BlackBox is a Dual Channel, High current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50 as well as our Electronic poppet style gates including; CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates.

The BlackBox is capable of multiple strategies and will accept PWM (Pulse Width Modulation) inputs as used for traditional boost control solenoids, 0-5v position target, CAN position target and CAN bus override for more advanced ECU’s where control strategy can be developed natively. The Blackbox provides for auto-calibration of Electronic External Wastegates via a full sweep and includes over temp safety features using the temperature sensor inputs.

The BlackBox is pre configured with the flow vs. lift calibration data of all Electronic Actuatuated Wastegates from Turbosmart for simple setup and accurate boost control. Settings can be adjusted via a simple USB connection and PC based application and unlimited control strategies can be implemented with the CAN based override system where your strategy is limited only by your ECU’s capability.

Features

Dual Channel High Current H-Bridge Outputs

2 x Wastegate Valve Position Inputs (0-5v)

2 x Wastegate Temperature Inputs (0-5v)

2 x Frequency Inputs (Advanced Wastegate Position Encoder)

PWM Target Position Input

Analog 0-5v Position Target

CAN Bus Position Demand Target

CAN Bus Valve Area Target

CAN Bus Programmable PID Mode Option

Factory Loaded PID Calibration for all Turbosmart eGates

Internal Over-Current Protection

Internal Over-Temp Protection

Auto Position Calibration

Anodized Aluminium Housing

Worldwide Shipping

Yes! We ship to most countries via DHL. For a shipping quote add the items to your basket, update your address and it will calculate the shipping price. If you feel the price to be incorrect or no options are available, please get in contact providing your address inc name, contact number, and email address plus the products you wish to order.

When will my order be dispatched?

We aim to dispatch all "In Stock" items same working day if ordered before 12:00 Midday, orders placed after this time will be dispatched the following working day.

Out-of-stock items or items with a status of "Available from Supplier" are usually dispatched within 2 weeks. If there is urgency, or a more accurate date is required don't hesitate to get in touch with us.

Built-to-order manifolds are typically built in a 1st come 1st served order, and our lead times vary with demand, We advise contacting us to get our most up-to-date information

What shipping options are available?

Within the UK our main shipping methods are 1st Class Royal Mail and Next Day DHL. Orders under £50 and small in size may have the option for Royal Mail dispatch. However, for urgent orders we advise opting for the DHL Service

Outside the UK we almost exclusively use DHL, Shipping quotes can be obtained at the basket when entering the delivery address. For delivery destinations outside of the European Union (EU) items will be liable for import duty and taxes at the local rate. We are unfortunately unable to advise on these costs.

Additional information

Weight 2 kg
Brand

Turbosmart

$659.04 ex Tax

1 in stock - Dispatched same working day when ordered before 12:00 Midday (additional stock can be backordered)

1 in stock - Dispatched same working day when ordered before 12:00 Midday (additional stock can be backordered)

SKU: TS-0305-1001 Categories: ,
